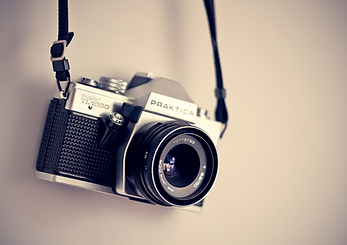

WHAT IS A CAMERA?
A camera is an optical instrument that captures a visual image. At their most basic, cameras are sealed boxes (the camera body) with a small hole (the aperture) that allows light to capture an image on a light-sensitive surface (usually photographic film or a digital sensor).
MANUFACTURING PROCESS
Camera chassis and cover
The camera chassis or body and back cover are made of a polycarbonate compound, containing 10-20% glass fibre. This material is very durable, lightweight, and shock-resistant as well as tolerant to humidity and temperature changes. Its major disadvantage is that it is not resistant to chemicals. The polycarbonate is moulded to very specific tolerances because the internal workings of the camera must fit precisely to work well and to use the strength of the chassis for protection against jarring and other shocks, to which mechanical and electronic parts are sensitive. After the chassis is moulded and assembled, it becomes the frame to which other parts of the camera, like electrical connections in the battery housing and the autofocus module, are attached.
Shutter and film transport system
The shutter assembly and film transport system are manufactured on a separate assembly line. These parts are largely mechanical although the film transport system has electronics to read the speed of the film. DX film coding appears as silver bands on the roll of film, and these are detected by multiple contacts in the film chamber. More advanced cameras have microchips that see the data imprinted in the silver bands and adjust shutter speed, flash, and other camera actions. Again, all parts are precisely made; the film magazine size must be accurate to 60 thousandths of an inch.
The shutter functions like a curtain that opens and closes. It must operate exactly to expose the film for the correct length of time and to coordinate with other operations such as the flash. The shutter is made of different materials depending on the type of camera and manufacturer.
Viewfinder lens
The viewfinder lens is a specialized lens that is manufactured using the same methods as a camera lens. The viewfinder also is made of optical glass, plastic, or glass/plastic combinations. All but the simplest viewfinders contain reticles that illuminate a frame and other information on the eye lens to help the photographer frame the picture. An in-line mirror has specialized coatings for colour splitting; as many as 17 coatings may be added to the mirror to correct and modify its reflective properties.
Single-lens reflex (SLR) cameras have through-the-lens viewing capabilities and are also called real image viewfinders because they let the photographer see as the lens sees. The SLR viewfinder uses a prism to bend the light from the lens to the photographer's eye, and the prism is made of optical glass to precise requirements to make the correct view possible.
LCD screen and electronics
Advanced cameras and most compact models include a liquid crystal display (LCD) screen that provides information to the photographer such as film speed, aperture, photographic mode (including landscape, portrait, close-up, and other modes), count of photos taken, operation of redeye and flash and other accessories, battery condition, and other data regarding the camera's workings. Integrated circuitry is constructed.
Quality Control
All departments from manufacturing to shipping have their own quality assurance procedures, and companywide quality assurance is also overseen by a separate division or department. The overseeing quality assurance divisions use statistical methods to monitor aspects of product quality such as camera function, performance, consistency, and precision. They also guide the flow of one assembly system into another and provide corrective measures if problems arise.
