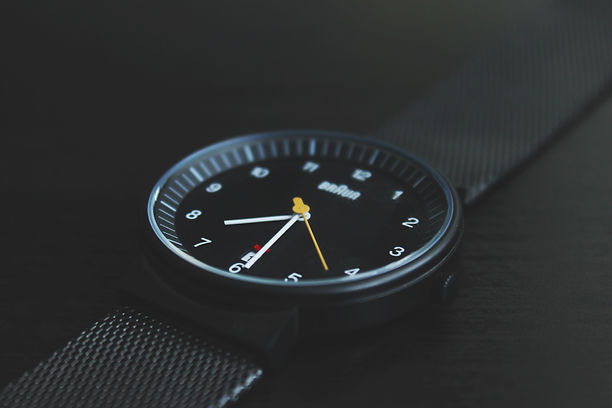

Quartz Watch



WHAT IS QUARTZ WATCH?

Quartz clocks and quartz watches are timepieces that use an electronic oscillator regulated by a quartz crystal to keep time. Quartz is also used in radios, microprocessors, and many other technological and industrial applications.


MANUFACTURING PROCESS


Quartz:

The heart of a quartz watch is a tiny sliver of quartz. The synthetically produced quartz is cut by the manufacturer with a diamond saw and shipped to the watchmaker to use. The production of "grown" quartz is a critical step in the process. Quartz, in a natural form, is first loaded into a giant kettle or autoclave. Hanging from the top of the autoclave are seeds or tiny particles of quartz with the desired crystalline structure. An alkaline material is pumped into the bottom of the autoclave, and the autoclave is heated to a temperature of roughly 750 degrees Fahrenheit (400 degrees Celsius). The natural quartz dissolves in the hot alkaline liquid, evaporates, and deposits itself on the seeds. As it deposits itself, it follows the pattern of the crystalline structure of the seeds. After about 75 days, the chamber can be opened, and the newly grown quartz crystals can be removed and cut into the correct proportions.


The microchip:

The electronic leads generated by a battery through the quartz (producing oscillations) will go to a microchip that serves as a "frequency dividing circuit." Microchip manufacture, like the quartz, is also carried out by the supplier to the watch manufacturer. An extensive and complex process, making microchips involves chemical and/or x-ray etching of a microscopic electronic circuit onto a tiny piece of silicon dioxide. The oscillation rate of perhaps 100,000 vibrations/second is reduced to 1 or 60 or some other more manageable number of oscillations. The new pattern of oscillation is then sent to another microchip that functions as a "counter-decoder-driver." This chip will actually count the oscillations that it receives. If there are sixty oscillations per second, the chip will change the reading on an LED every second. After 3,600 oscillations (60 x 60), the counter will instruct the LED to change the reading for minutes. And, after 60 x 60 x 60 oscillations (216,000), the counter will change the hour reading.


Assembly:

The entire set of crystal and microchips is set onto a circuit board. The board incorporates a space to hold the battery that supplies electricity to the quartz crystal and supplies the power for the LED display. Generally, the space for the battery is on the outside of the surface facing the back of the case. The battery can be replaced by removing the back of the watch, shaking out the old one, and dropping in the new battery. This mechanism involves two pins that extend beyond the case of the watch. One pin lets the counter circuit know which reading to reset—seconds, minutes, or hours. The second pin is pushed a number of times to bring the display to the desired reading. The entire circuit board, along with a battery, is then closed into a case, and a wrist strap is attached.


Quality Control:

After a watch is manufactured, it is again tested before being shipped to market. In addition to its time-keeping accuracy, it is also subjected to a drop-test in which it must continue to operate properly after being dropped and otherwise abused; a temperature test; and a water test. While a watchmaker may, with proper testing and proof, claim that a watch is "water resistant" at certain, known specifications, it is inaccurate to say a watch is "waterproof because without particular specification that designation is meaningless.
